Machine Description
Leak tester speed is synchronized with conveyor. Leak tester will move along with conveyor to test bottle whether there is leakage. If any bottle has leakage, bottle will be automatic rejected at outfeed area.
-
Feature
l Module base design, fast installation
l Apply different bottlewithout change machine structure
l With PLC control and HMI touch screen
l With air rejecter to reject any defected bottle
-
Machine Parameter
Item
Parameter
Note
Electricity
3 phase 5 wires 380V 50HZ or 220V
Power
0.3KW
Air Pressure
0.6±0.1MPa
Air Consumption
100L/min filteredair
Applied Bottle size
Volume between 30ml~15L
It may required changeover parts
Leak Test Accuracy
hole diameter≥0.2mm；
Accuracy, Failure rate, hole diameter is related to bottle volume
Accuracy>99.8%；
Leak Test Failure rate<0.1%
Leak Test Channel
1~3
Speed
TBA
Size
As per CAD Drawing
Weight
Less than 400kg

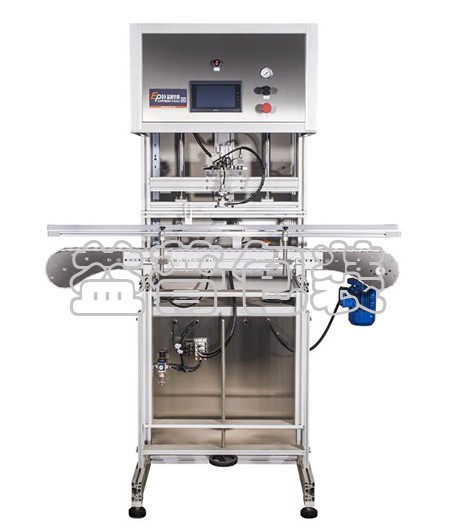

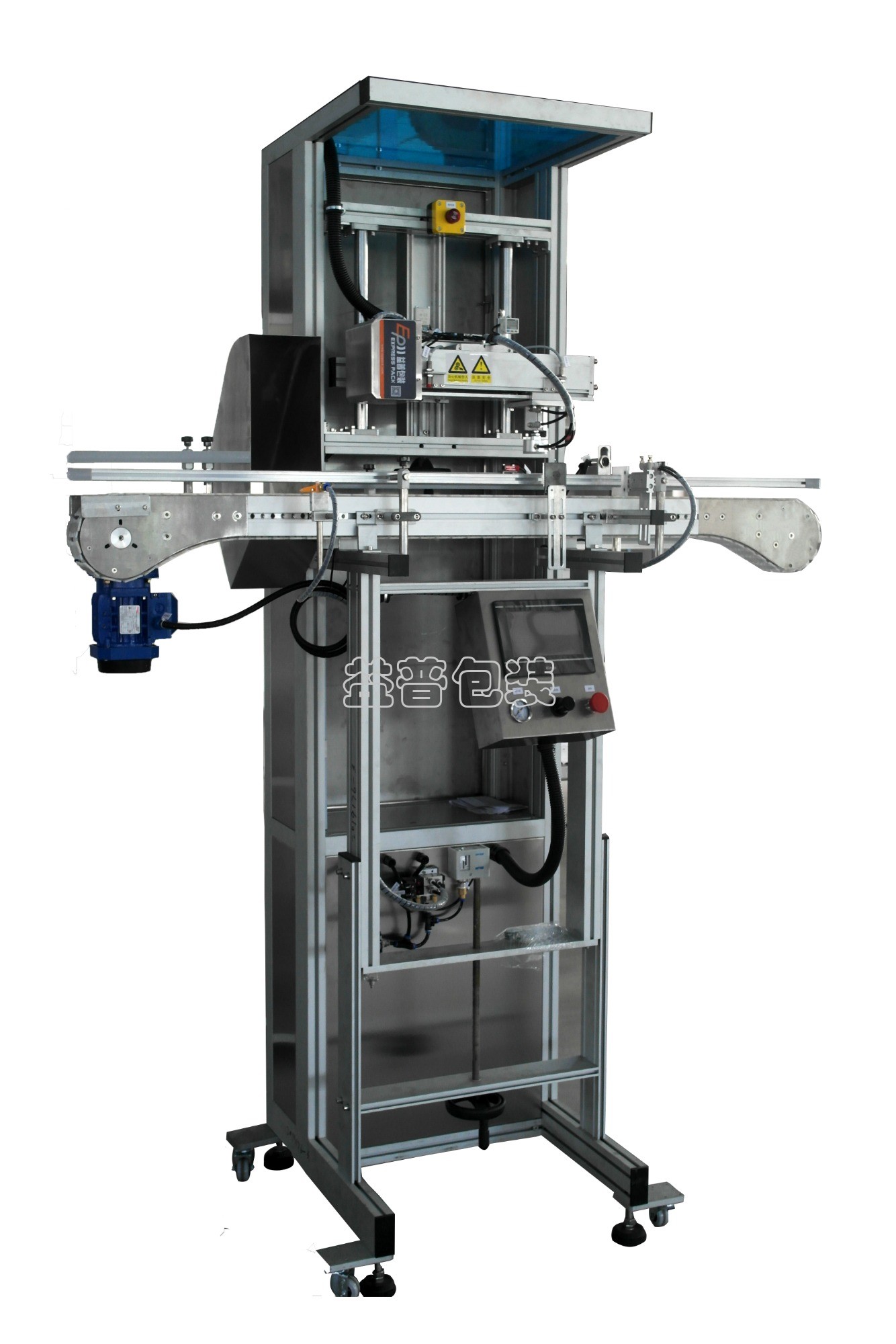

EPLT-S Moving Head Leak Tester
Leak tester speed is synchronized with conveyor. Leak tester will move along with conveyor to test bottle whether there is leakage. If any bottle has leakage, bottle will be automatic rejected at outf
